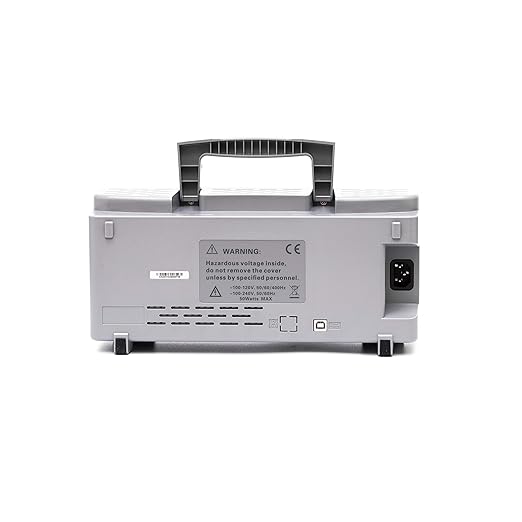

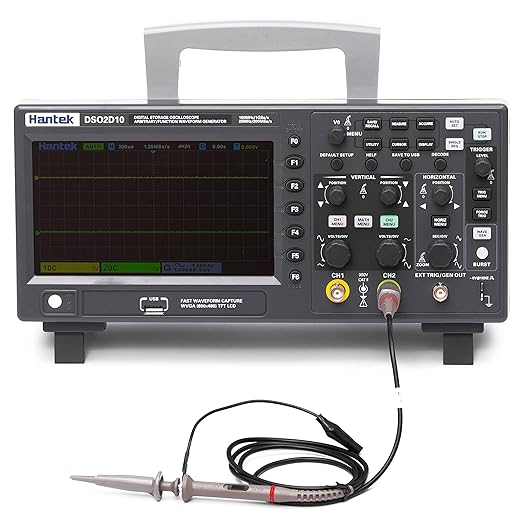

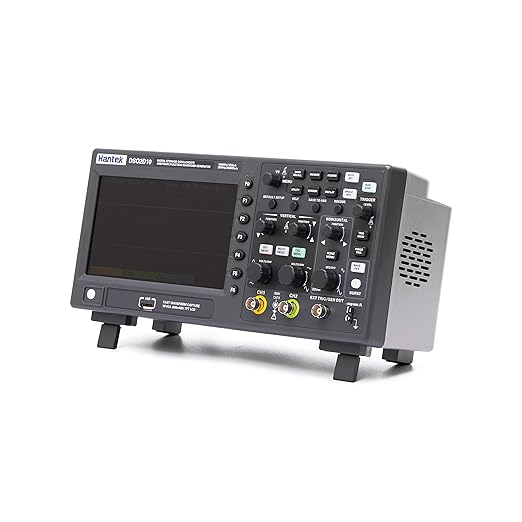

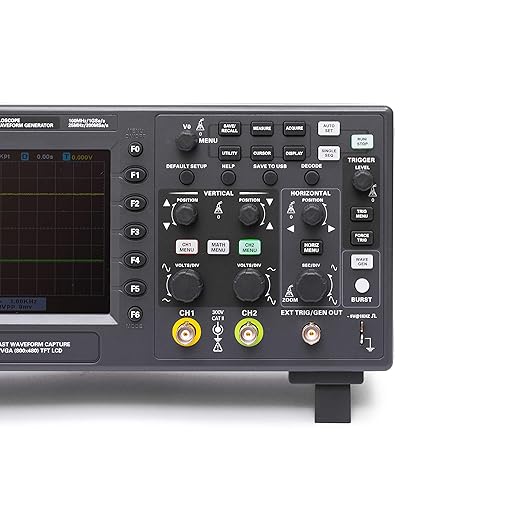

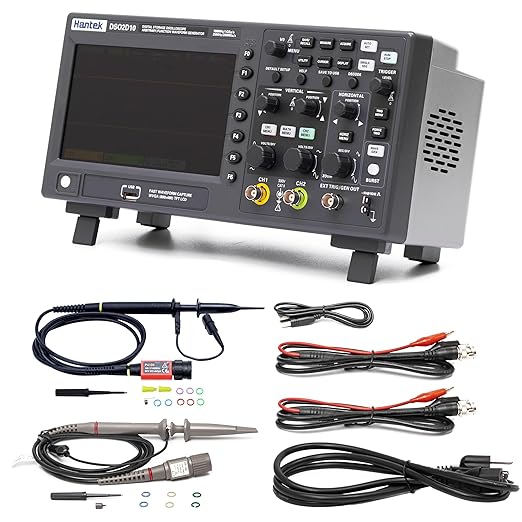

Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator

Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator

$379.48
Skip to product information
Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator
  • Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator
  • Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator
  • Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator
  • Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator
  • Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator
  • Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator
  • Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator
Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator

Hantek DSO2D10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator

$379.48
Shipping calculated at checkout.
Details

About This

  • Parameter: 2+1 channels which are respectively controlled by independent knobs; Bandwidth: 100 MHz; Sampling Rate: 1 GSa/s; Memory Depth: 8M; Vertical Range: 2mV/div～10V/div；Vertical resolution：8bit;Waveform Generator Bandwidth: 25MHz
  • Function: Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC; BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
  • A 3-digit digital voltage meter and a 6-digit hardware frequency indicator; 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc. 2 sets of digital voltmeters; Support threshold testing, free measurements within the screen
  • Arbitrary waveform generator: 1CH; Sample rate: 200MSa/s; Vertical resolution: 12 bits; Maximum frequency: 25MHz; Standard waveforms: sine, square, ramp, Exp, noise,DC
  • Desktop digital oscilloscope with waveform generator is simple and easy to use for home users, electronics enthusiasts, amateur DIY enthusiasts users to diagnose and repair home appliances, automobiles, stereos, the measurement accuracy is high enough; can be applied to laboratories, schools, circuit repair, light bulb testing, mechanical testing, mobile phone computer repair and other scenarios
